Los Angeles Lighting Mfg. Co.

MADE IN AMERICA
COMMERCIAL & INDUSTRIAL
STANDARD & CUSTOM LUMINAIRES

RSL003

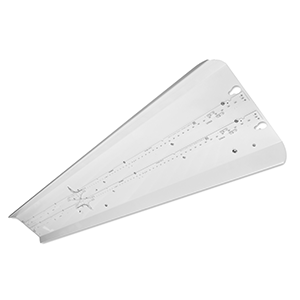

LED Retrofit Solution for Outdoor Strip Luminaires

Applications: Commercial, Refrigeration, Dusty Areas, Freezer

Features

  • LED retrofit solution for outdoor strip light fluorescent luminaires

  • 0-10V dimming driver standard

  • Includes easy-to-read installation instructions

  • 2 safety cables pre-installed

  • Supports California Title 24 compliance

Options

  • Controls
  • Tunable white available
    (2700K – 6500K)
  • Emergency battery pack
  • Painted after fabrication
  • Customization available upon request

Construction

  • 22 ga. galvanized steel LED cover tray

  • LED cover tray to be secured to the host fixture with provided screws

  • Conformal coated boards

Finish

  • Baked white powder-coated finish
  • Minimum reflectance 90%
  • Painted after fabrication

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
