RWCP300

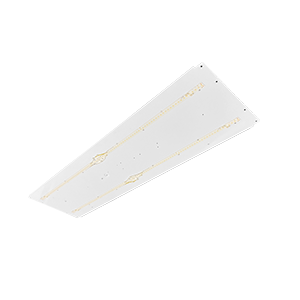

LED Retrofit Solution for 13 ¾” Wide Wraparound Luminaires
Applications: Classrooms, Workrooms, Kitchens, Locker Rooms, Offices
Features
Safety cables for easy installation
0-10V Dimming driver standard
Supports California Title 24 compliance
Includes installation hardware, required UL labels, and instructions
Options
-
Controls
-
Painted after fabrication
-
Emergency battery pack
-
Tunable white (2700K-6500K)
-
Additional lumen packages available
-
Customization available upon request.
Construction
22 gauge cold-rolled steel LED tray
LED tray to be secured to the host fixture with provided screws
Finish
- Pre-painted
- Baked white polyester finish
- Minimum reflectance 86%
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
