Retrofit Solution for Indirect Fluorescent Luminaires

Application: Commercial, Retail, Indirect

Available In: LED

(IES Files, Photometrics, and other info available in downloads area on this page)

Features

  • 0-10V dimming driver standard (packaged separately)
  • Includes easy-to-read installation instructions
  • Pre-punched holes to install the necessary hardware and wiring
  • 2 safety cables pre-installed
  • LED cover tray to be secured to the host fixture with provided screws
  • Supports California Title 24 compliance

Options

  • Controls
  • Tunable white available (2700K – 6500K)
  • Emergency battery pack
  • Painted after fabrication
  • Customization available upon request

Construction

  • 22 ga. cold rolled steel LED cover tray

Finish

  • Baked white polyester finish
  • Minimum reflectance 86%

Optical

  • Frosted acrylic lens

Listing

  • UL USA and Canada Classified

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • LED light engine is pre-wired with a quick connector for easy connection
  • Driver-disconnect is provided for disconnecting the electrical supply conductors to the LED driver
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%

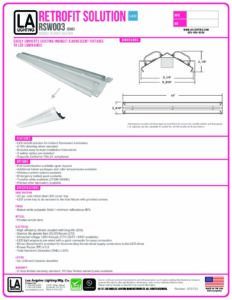

RSW003

Retrofit Solution for Indirect Fluorescent Luminaires

RSW003

Retrofit Solution for Indirect Fluorescent Luminaires
Application: Commercial, Retail, Indirect
Available In: LED
(IES Files, Photometrics, and other info available in downloads area on this page)

Features

  • 0-10V dimming driver standard (packaged separately)
  • Includes easy-to-read installation instructions
  • Pre-punched holes to install the necessary hardware and wiring
  • 2 safety cables pre-installed
  • LED cover tray to be secured to the host fixture with provided screws
  • Supports California Title 24 compliance

Options

  • Controls
  • Tunable white available (2700K – 6500K)
  • Emergency battery pack
  • Painted after fabrication
  • Customization available upon request

Construction

  • 22 ga. cold rolled steel LED cover tray

Finish

  • Baked white polyester finish / minimum reflectance 86%

Listing

  • UL USA and Canada classified

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V through 277V (347V / 480V available)
  • LED light engine is pre-wired with a quick connector for easy connection
  • Driver-disconnect is provided for disconnecting the electrical supply conductors to the LED driver
  • Power Factor (PF) greater than or equal to 0.9
  • Total Harmonic Distortion (THD) less than or equal to 20%

RSW003

Retrofit Solution for Indirect Fluorescent Luminaires
