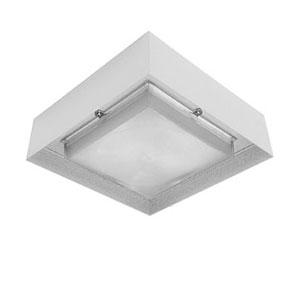

BCL100-DSA
Wet Location Canopy Luminaire- Dark Sky Applications
Applications: Canopy, Education Facilities, Corridors, Stairwell, Pedestrian Tunnel, Passageway
Features
- 0-10V dimming driver standard
- Wet location
(UL Listed with sprinkler test) - Supports California Title 24 compliance
- Safety cables attached to enclosure and cover
Options
- Controls
- Custom housing colors
- Tamper proof screws
- Pendant mounting adapter
- Emergency battery pack
- Customization available upon request
Construction
- 20 ga. electro-galvanized steel construction
- Neoprene gasket back housing
- Aluminum heat sink cover
- Stainless steel fasteners
- Two side knockouts for ½” conduit (knockouts on opposite sides of fixture)
Finish
- Baked white powder-coated finish
- Minimum reflectance 90%
- Painted after fabrication
Optical
- Polycarbonate injection molded lens standard
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High efficiency drivers coupled with long-life LEDs
- Service life greater than 50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V / 480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
