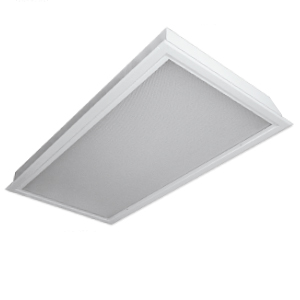

FCR721

2' Wide Recessed Flanged Cleanroom Luminaire with Tapered Housing (Class 1000/1000)

Applications: Cleanroom, Sealed Ceiling Areas, Commercial

Features

  • Class 1000 / 1000
  • ISO Class 5 Equivalent
  • 0-10V dimming driver standard
  • Supports California Title 24 compliance

Options

  • Wet location (UL listed with sprinkler test)
  • Controls
  • Lens and door frame
  • Antimicrobial finish
  • Tamper proof screws
  • Hanger yokes
  • Emergency battery pack
  • Tunable white (2700K – 6500K)
  • Customization available upon request

Finish

  • Baked white powder-coated finish
  • Minimum reflectance 90%
  • Painted after fabrication

Optical

  • Inverted clear prismatic acrylic lens
  • Nominal 0.125 standard

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Construction

  • 22 ga. cold rolled steel welded housing
  • All parts fitted and sealed
  • No unused holes or knockouts
  • 20 ga. cold rolled steel door frame secured by full length piano hinge and 2 captive screws
  • Door frame and lens sealed with closed cell neoprene gasket
  • 18 ga. trim flange

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
