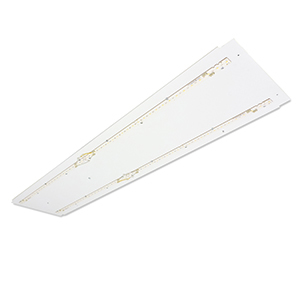

RWHO300
LED Retrofit Solution for 13½” Wide Wraparound Luminaires
Applications: Commercial, Classrooms, Offices
Standard Lengths: 4′, 8′
Features
- Made in America, BABA & BAA Compliant
- Converts WHO300 and similar 13 1/2″ wide fluorescent wraparound luminaires to LED
- 0-10V dimming driver standard
- Includes easy-to-read installation instructions
- Pre-installed safety cables
- Supports California Title 24 compliance
Options
- Sensors and controls
- Tunable white (2700K – 6500K)
- Emergency battery pack
- Painted after fabrication
- Customization available upon request
Construction
- 22 gauge cold-rolled steel LED cover tray
Finish
- Pre-painted housing
- Baked white polyester finish
- Minimum reflectance 86%
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
