Los Angeles Lighting Mfg. Co.

MADE IN AMERICA
COMMERCIAL & INDUSTRIAL
STANDARD & CUSTOM LUMINAIRES

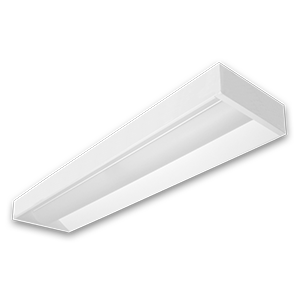

MDC310

1' x 4' Surface Mount Lensed Luminaire

Applications: Commercial, Classroom, Office

Features

  • 0-10V dimming driver standard
  • Supports California Title 24 compliance
  • Suitable for damp location

Options

  • Controls
  • Custom housing colors
  • Emergency battery pack available
  • Tunable white available (2700K – 6500K)
  • Customization available upon request

Construction

  • 20 ga. cold rolled steel housing
  • Cold rolled steel reflectors

Finish

  • Baked white powder-coated finish
  • Minimum reflectance 90%
  • Painted after fabrication

Optical

  • Frosted radial lens to maximize lumen output while cutting glare

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
