Los Angeles Lighting Mfg. Co.

MADE IN AMERICA
COMMERCIAL & INDUSTRIAL
STANDARD & CUSTOM LUMINAIRES

MFF104

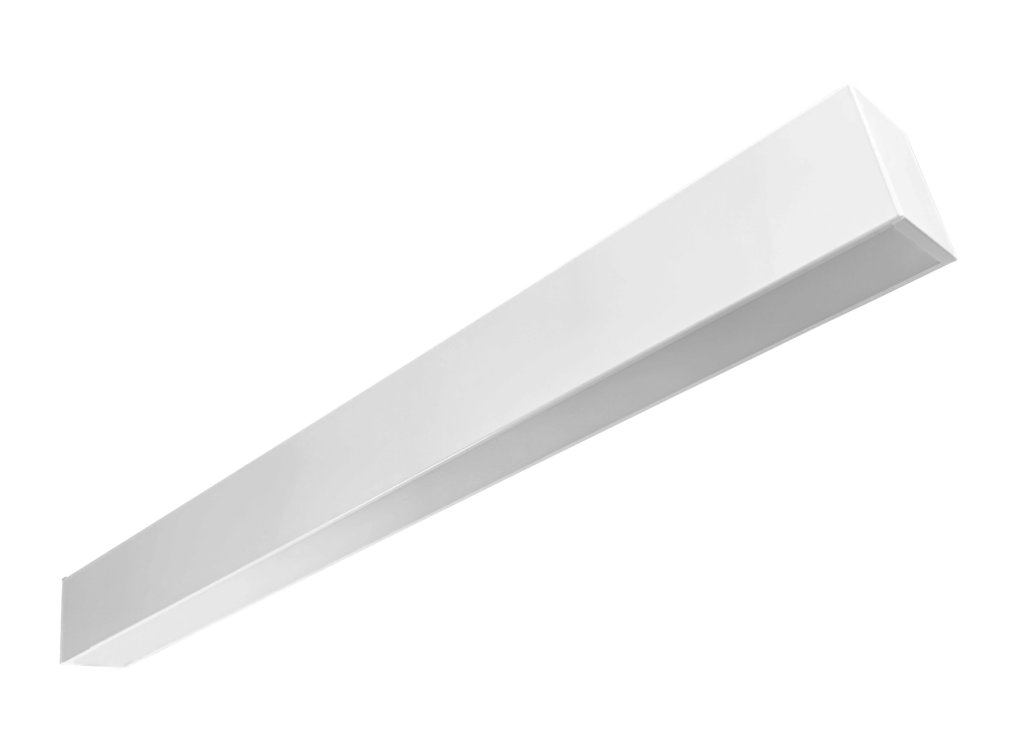

4" Wide Surface Mount Frameless Flat Luminaire

Applications: Office, Retail, Accent Lighting

Features

  • Surface mounted LED luminaire
  • 0-10V dimming driver standard
  •  Supports California Title 24 compliance

Options

  •  Controls

  • Lens
  • Custom housing colors
  • Cord & plug
  • Canopy / cable / stem suspension systems
  • Emergency battery pack
  • Tunable white (2700K – 6500K)
  • Customization available upon request

Construction

  •  22 gauge cold-rolled steel housing
    (2′ and 4′ lengths)

  • 20 gauge cold-rolled steel housing
    (6′ and 8′ lengths)

Finish

  • Baked white powder-coated finish
  • Minimum reflectance 90%
  • Painted after fabrication

Optical

  •  Frameless, flat frosted white acrylic lens

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
