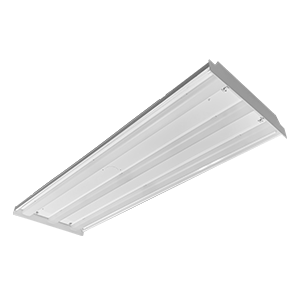

HBN200

16" Wide Industrial High Bay Luminaire

Applications: High Bay, Gymnasium, Commercial, Industrial

Features

  • Surface / suspension / pendant mounted luminaire
  • Controls and sensors available
  • Suitable for damp locations
  • Customization available upon request

Options

  • Frame and lens assembly
    (available in 4′)
  • Inner frame lens

Finish

  • Baked white powder coated finish
  • Minimum reflectance 90%
  • Painted after fabrication

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Construction

  • 22 ga. Die formed cold rolled steel with louvered vents for heat removal
    (20 ga. Cold rolled steel and 0.040 aluminum housing available as specified)

  • 20 ga. Cold rolled steel door frame secured by T-hinges and
    positive spring-loaded latches (safety cables attached)

  • 11 ga. Wire guard available

  • Pendant mounting hub/adapter available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
