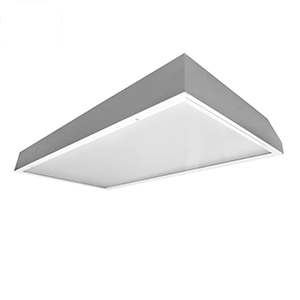

GWL320
2' Wide Wet Location Recessed Troffer
Applications: Kitchens, Bathrooms, Wet Indoor Locations
Standard Dimensions: 2′ x 2′, 2′ x 4′
Features
- Made in America, BABA & BAA Compliant
- Wet location (UL listed with sprinkler test)
- 0-10V dimming driver standard
- Supports California Title 24 compliance
- Recessed mounted wet location LED luminaire for 1″ or 1½” wide inverted T-bar ceilings
Options
- Wet location (UL listed with sprinkler test)
- Sensors & controls
- Lens and door frame
- Antimicrobial finish
- Tamper proof screws
- Emergency battery pack
- Tunable white (2700K – 6500K)
- Customization available upon request
Finish
- Painted after fabrication
- Baked white powder-coated finish
- Minimum reflectance 90%
Optical
- Inverted clear prismatic acrylic lens
- Nominal 0.125″ thickness standard
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Construction
- 22 gauge electro-galvanized steel welded housing
- 20 gauge electro-galvanized steel door frame secured by full-length piano hinge and two captive screws
- All parts fitted and sealed
- No unused holes or knockouts
- Door frame and lens sealed with closed cell neoprene gasket
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
