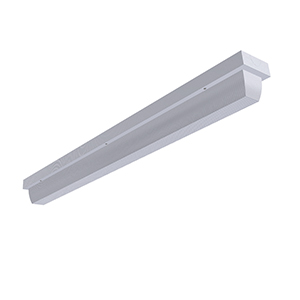

WSE400
5" Wide High-Impact Security Wraparound Luminaire
Applications: Commercial, Industrial, Corridors, Parking Structures, High-Traffic Areas
Standard Lengths: 4′
Features
- Made in America, BABA & BAA Compliant
- 0-10V dimming driver standard
- Supports California Title 24 compliance
Options
- Range of lumen packages and color temperatures
- Sensors and controls
- Emergency battery pack
- Tunable white (2700K – 6500K)
- Customization available upon request
Construction
- 20 gauge cold-rolled steel welded housing
- Spot-welded seams and corners
- Lens secured by stainless steel captive tamper resistant screws
- Cross-linked polyethylene gasket
Finish
- Painted after fabrication
- Baked white powder-coated finish
- Minimum reflectance 90%
Optical
- Clear prismatic polycarbonate lens (nominal 0.187″ thick)
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
