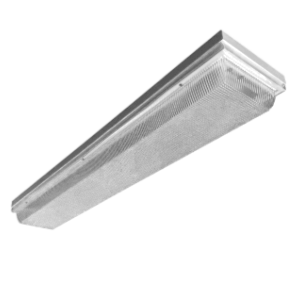

WSE500

10" Wide High Impact Security Wraparound Luminaire

Applications: Security, Vandal Resistant Areas, Commercial

Features

  • 0-10V dimming driver standard
  • Supports California Title 24 complianc

Options

  • Controls
  • Emergency battery pack
  • Tunable white (2700K – 6500K)
  • Customization available upon request

Construction

  • 20 ga. cold rolled steel welded housing
  • Spot welded seams and corners
  • Lens secured by 4 stainless steel captive tamper resistant screws
  • One-way cross-linked polyethylene gasket standard

Finish

  • Painted after fabrication
  • Baked white powder-coated finish
  • Minimum reflectance 90%

Optical

  • Clear prismatic polycarbonate lens (nominal 0.187)

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High-efficiency drivers paired with long-life LEDs
  • Service life >50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V/480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
