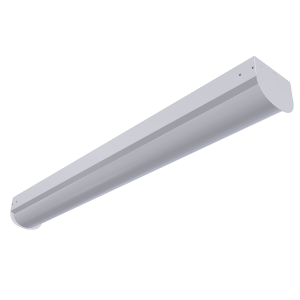

WSE250

6" Wide Wraparound Luminaire

Applications: Stairwells, Parking Structure, Passageways, Workrooms

Features

  • 0-10V dimming driver standard
  • Supports California Title 24 compliance
  • Suitable for damp locations

Options

  • Controls
  • Custom housing colors
  • Emergency battery pack
  • Tunable white (2700K – 6500K)
  • Plug-in branch wiring connector system
  • Cord & plug
  • Customization available upon request

Construction

  • Aluminum housing with riveted end plates
  • Side knockouts for ½” conduit
  • End neoprene gasket

Finish

  • Baked white powder coated finish
  • Minimum reflectance 90%
  • Painted after fabrication

Optical

  • 4′ snap-on frosted micro linear prism acrylic lens, prism on the inside (two per 8′ fixture)

Listing

  • UL USA and Canada Listed
  • Suitable for damp locations

Warranty

  • 5-year limited warranty
  • 10-year limited warranty available

Electrical

  • High efficiency drivers coupled with long-life LEDs
  • Service life greater than 50,000 hours (L70)
  • Universal voltage 120V ~ 277V (347V / 480V available)
  • Power Factor (PF) ≥ 0.9
  • Total Harmonic Distortion (THD) ≤ 20%
