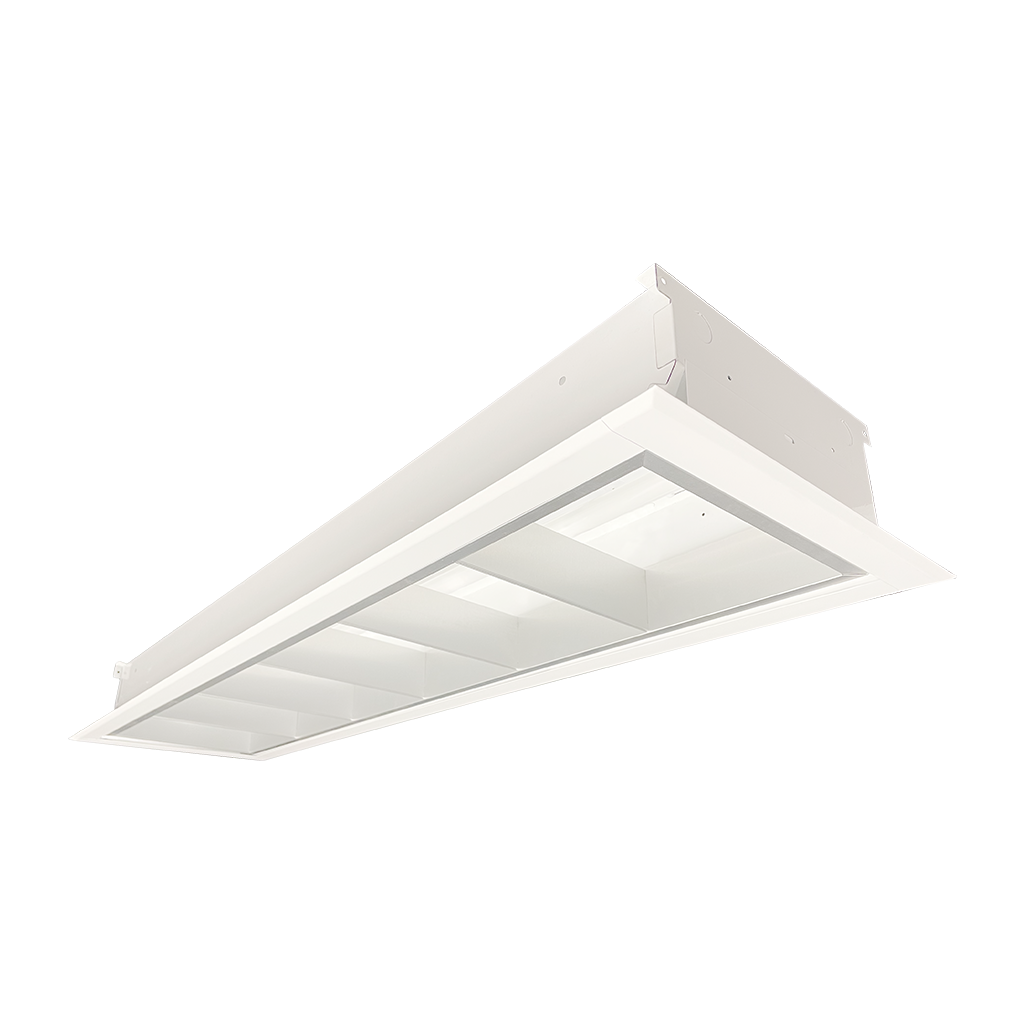

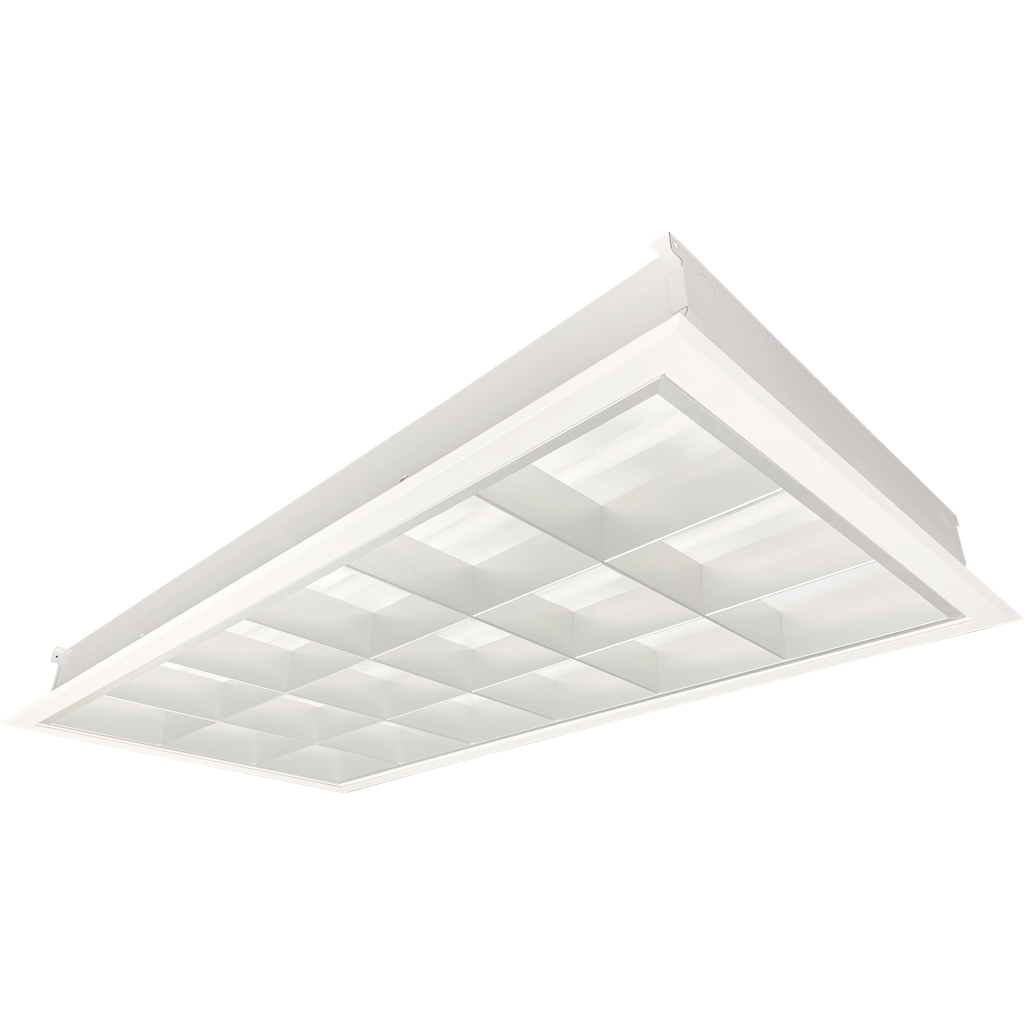

FPA600 Series
Recessed Flanged Parabolic Luminaire
Applications: Commercial, Office, Schools
Standard Dimensions: FPA610: 1’x4′ FPA620: 2’x2′, 2’x4′
Features
- Recessed flanged luminaire for hard ceilings
- 0-10V dimming driver standard
- Supports California Title 24 compliance
- Suitable for damp location
Options
- Sensors and controls
- White louvers (other colors also available)
- Hanger yokes
- Swing-out jacks
- 20 gauge cold-rolled steel housing
- Tunable white (2700K-6500K)
- Emergency battery pack
- Customization available upon request
Construction
- 22 gauge cold-rolled steel housing
- 18 gauge one-piece welded trim flange
- Louvers secured to housing by T-hinges and latches
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
Finish
- Pre-painted
- Baked white polyester finish
- Minimum reflectance 86%
Optical
- Nominal 3″ deep aluminum parabolic louvers
- Frosted acrylic lens covering each LED row
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
